High Mast Pole
Raise-and-lower high masts for highways, junctions and large open areas.

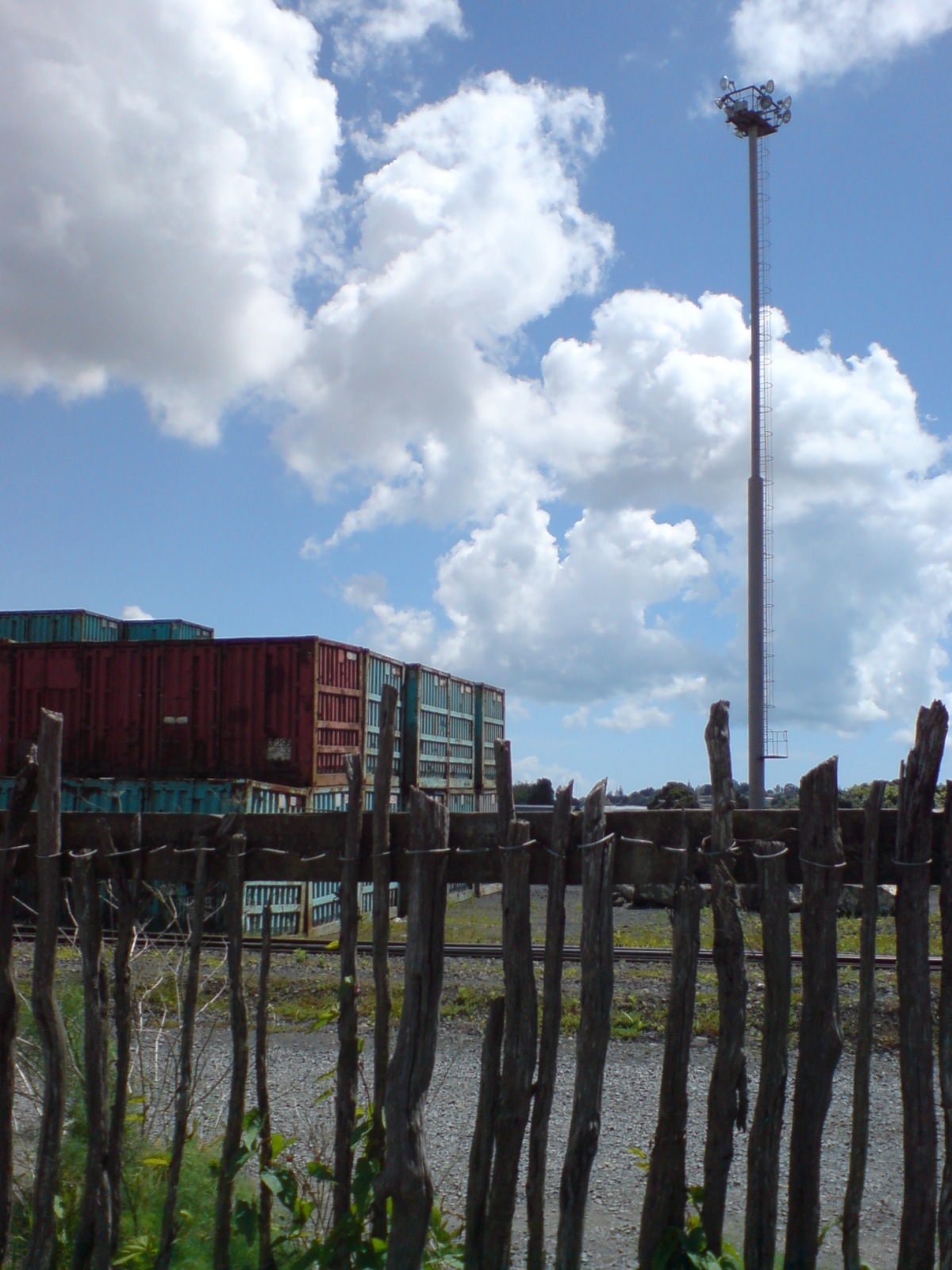

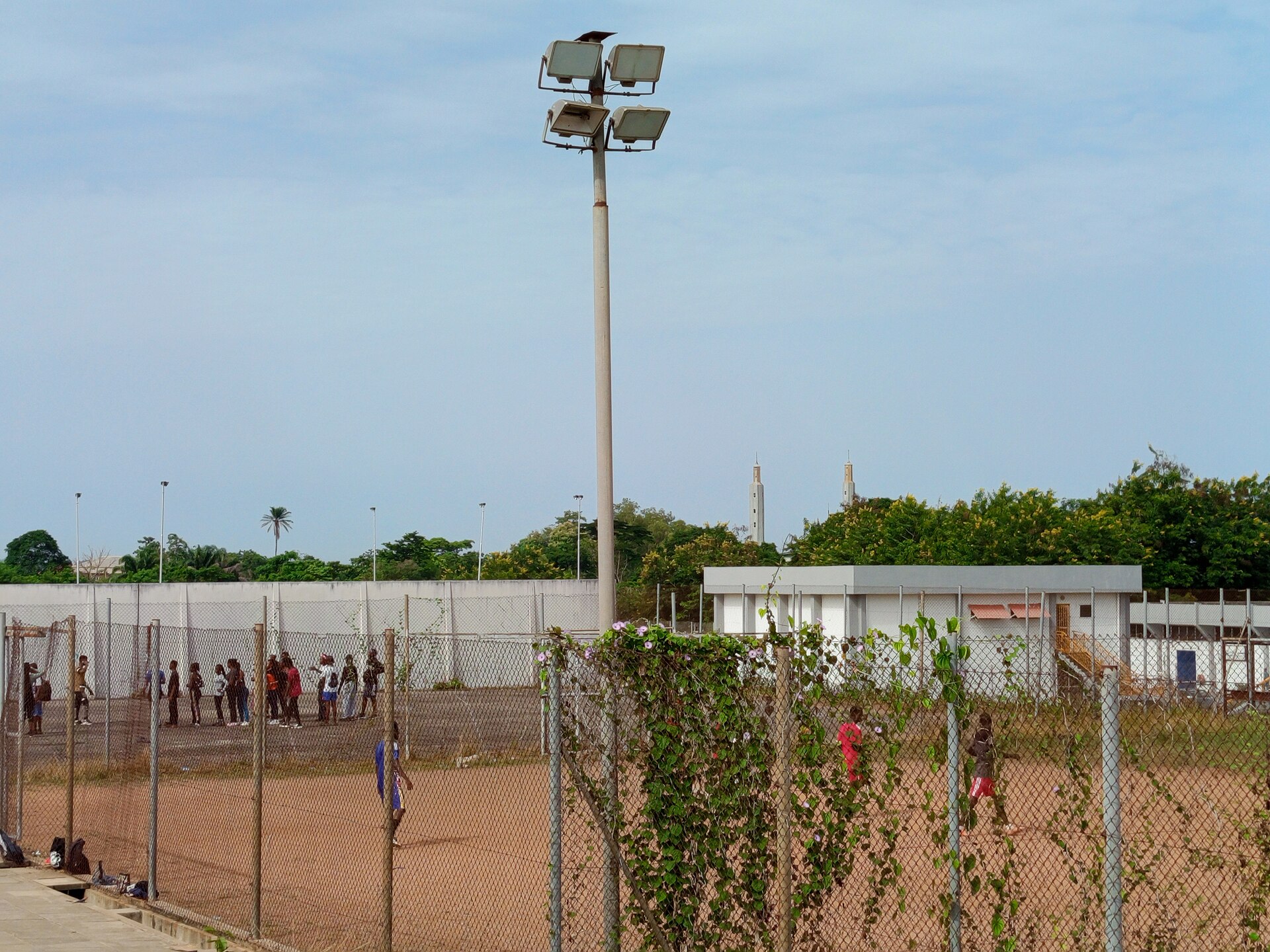

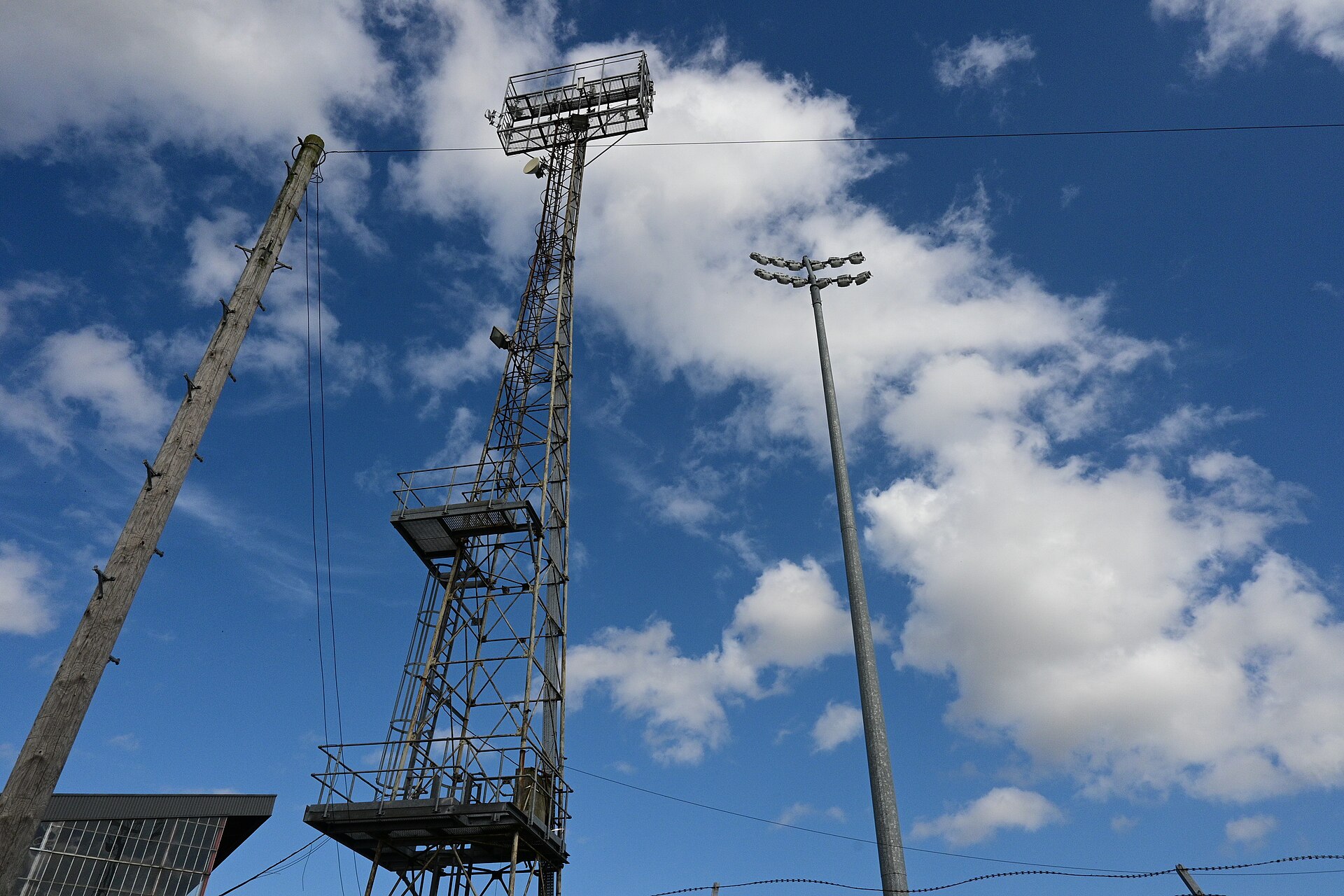

High mast poles carry a ring of luminaires on a raise-and-lower lantern carriage, lighting large open areas from a single tall position. They are the standard solution for highway interchanges, ports, railway yards, crossings and large public grounds where pole-mounted lighting would need too many positions.
Ironic Steel high masts are continuously tapered polygonal structures, hot-dip galvanized, supplied complete with headframe, lantern carriage, stainless-steel wire ropes, internal power/control cabling and a winch (manual or motorised). The carriage lowers to ground level for safe, tool-free lamp maintenance.
Every mast is engineered for the site wind zone to IS 875, with foundation and anchor-bolt details provided for the supplied structure.
- Continuous polygonal tapered section
- Raise-and-lower lantern carriage
- Manual or motorised winch
- Stainless-steel wire ropes and internal cabling
- Wind-zone design to IS 875
| Finish | Hot-dip galvanized (IS 2629) |
| System | Raise & lower with winch |
| Section | Polygonal, continuously tapered |
| Height Range | 12 m – 40 m |
| Material Grade | IS 2062 steel |
Need a quote for High Mast Pole?
Share your specifications and our engineering team will respond with a tailored solution.
